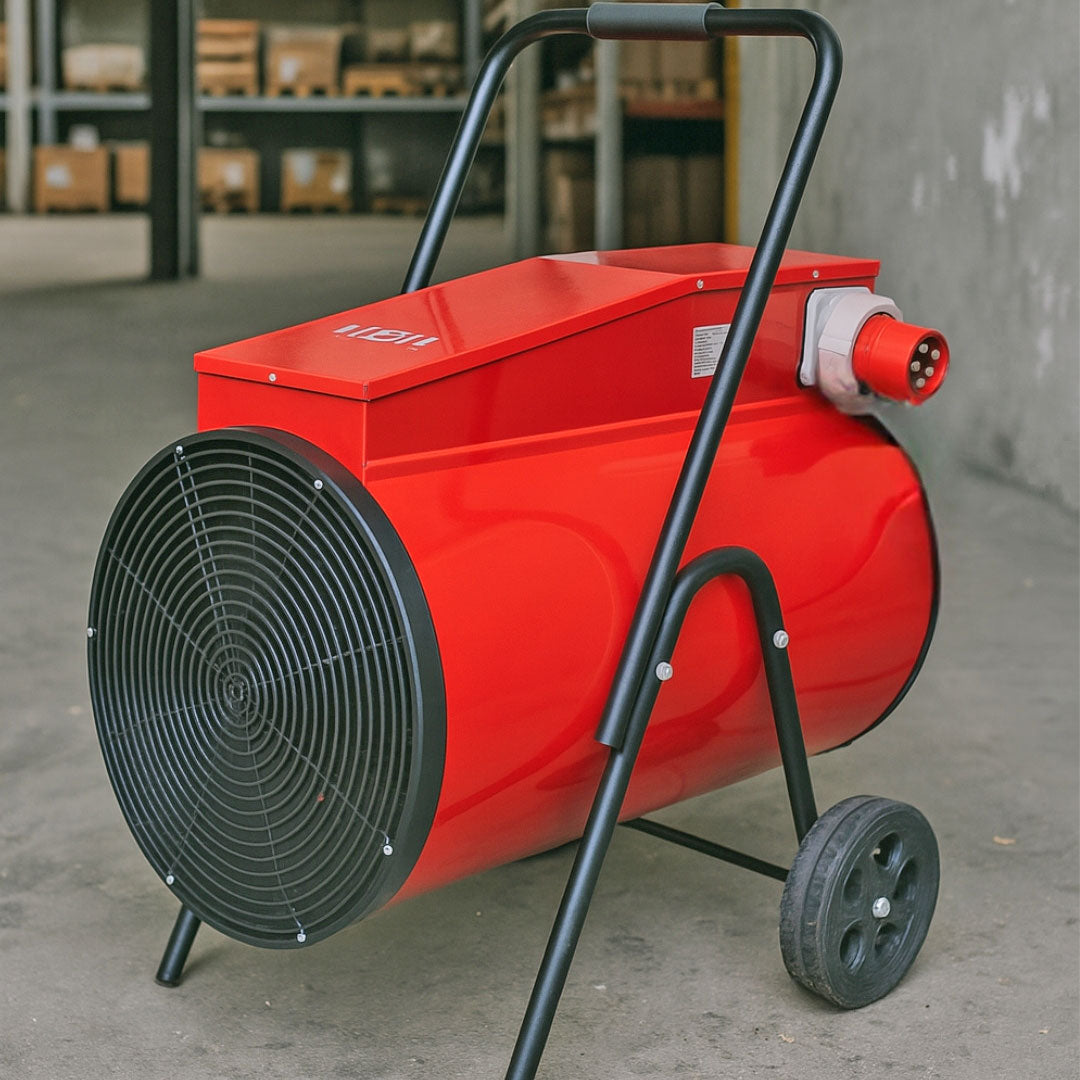

Very powerful electric heater WDH-BGC30 CEE63 30 kW
Very powerful electric heater WDH-BGC30 CEE63 30 kW
Low stock: 1 left
Couldn't load pickup availability
High-performance industrial heater with 400V / 63A connection
This powerful electric heater features an integrated fan and a maximum heating output of 30,000 watts (30 kW) . With its 400V/63A connection, it is perfectly suited for industrial power applications and ideal for commercial and demanding use .
The device impresses with its high efficiency , ease of use and robust metal construction , which ensures durability and reliability – ideal for industry, workshops, construction sites or production areas .
Characteristics:
- Power: 30,000 W (30 kW)
- Connection: 400V / 63A high-voltage current (380–415V, 50/60Hz)
- Integrated fan: fast and even heat distribution
- Material: almost entirely made of metal – extremely robust
- Areas of application: Industry, commerce, construction sites, production halls
Note: A high-voltage power cable is not included in the scope of delivery and can be ordered from us if required.
With this 30 kW electric heater, you get a powerful, durable and reliable heating device that provides fast and efficient heat even in the most demanding industrial applications.
Advantages:
- Heating output adjustable up to 30,000 watts (30 kW)
- Thermostat for regulating and setting the desired temperature
- Stepless temperature control (0 ~ 85° C at the air outlet)
- Two heating levels selectable (1 = 15,000 watts / 2 = 30,000 watts)
- Pure fan operation is also possible without heating function.
- Also suitable for continuous operation
- Protected against small foreign objects > 12.5 mm, as well as splashing water (IP24)
- Integrated overheating protection mechanism
- No changes are made during a power outage (the device continues where it was interrupted).
- High mobility thanks to the handy carrying handle and two large wheels
- No oxygen consumption
Examples of use:
- Temperature control: Construction sites, workshops, agriculture, unfinished apartments, garages, warehouses, basements, sheds, etc.
- Drying: Ideal for faster drying of plaster, concrete and the entire building shell.
- Damp objects: Ideal for damp halls, old buildings and professional drying.
- Damage repair: After flooding or firefighting water damage – ideal for supporting the drying process.
Technical data:
| Model name: | WDH-BGC30 |
| Operating voltage: | 400V ~ 50Hz |
| Maximum power consumption: | 30 kW (63 A) |
| Connection: | 63 A |
| Heating levels: | 2 (1 = 15 kW, 2 = 30 kW) |
| Thermostat: | Mechanical thermostat |
| Nominal heat output: | 30,000 W (30 kW) |
| Type of temperature control: | Stepless adjustment (0 - 85 °C) |
| Noise level: | approx. 72 dB/A |
| Protection class: | IP24 (splashproof) |
| Product dimensions (H/W/D): | 860 x 565 x 620 mm |
| Weight: | 26 kg |
| Scope of delivery: | Heating cannon, operating instructions |
| Maximum air circulation: | Approx. 1880 m³/h |
