Powerful electric heater WDH-IFH20 20kW

Powerful electric heater WDH-IFH20 20kW

Low stock: 1 left

Fr. 329.00
Fr. 329.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Location

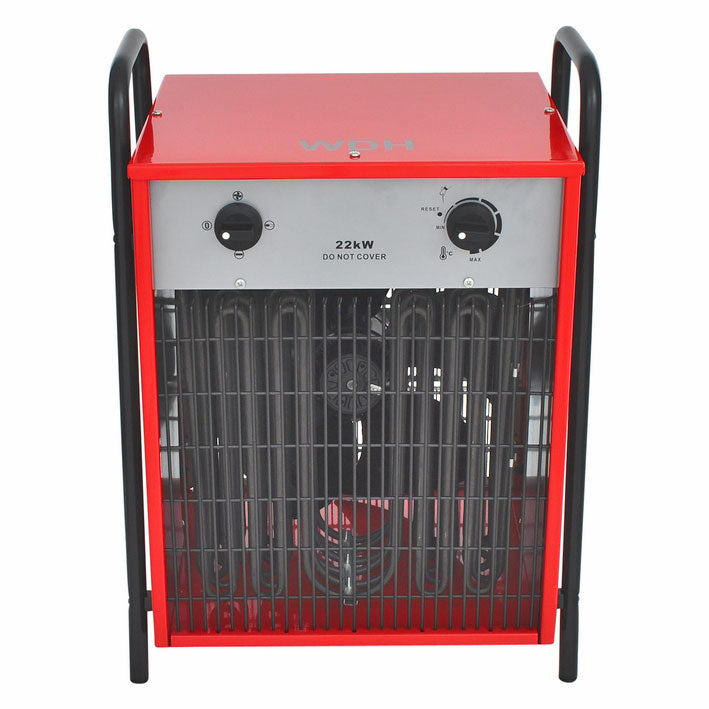

Electric heater 400V / 32A – High-voltage device for commercial & industrial use

This powerful electric fan heater with a 400V/32A connection (three-phase power) impresses with its high efficiency, robust construction, and ease of use. The unit is made almost entirely of metal , making it particularly durable and resistant – ideal for commercial and demanding applications in workshops, warehouses, or production areas.

Characteristics:

  • Connection: 400V / 32A high-voltage current (380–415V, 50/60Hz)
  • Material: Metal housing – durable and robust
  • Areas of application: Commerce, industry, construction sites, workshops
  • Advantages: efficient heat, easy operation, extremely robust

Note: A high-voltage power cable is not included . You can order the appropriate cable directly from us: 32A CEE connection cable (cross-section 6 mm²).

With this 400V / 32A electric heater, you get a reliable, powerful and durable heating device that has been specially developed for professional commercial and industrial applications.

Advantages:

  • Heating output adjustable up to 20,000 watts (20 kW)
  • Thermostat for regulating and setting the desired temperature
  • Two heating levels selectable (1 = 10,000 watts / 2 = 20,000 watts)
  • Pure fan operation is also possible without heating function.
  • Also suitable for continuous operation
  • Protection against dripping water (IP24)
  • Stepless temperature control (0 - 40° C)
  • Integrated overheating protection mechanism and reset function
  • No changes are made during a power outage (the device continues where it was interrupted).
  • Very easy mobility thanks to handy carrying handles.
  • The device is ready for immediate use (no installation or assembly required).
  • No oxygen consumption

Examples of use:

  • Temperature regulation: Construction sites, workshops, agriculture, apartments, garages, warehouses, cellars, sheds, garden sheds, laundry rooms, etc. Also suitable as a frost guard.
  • Drying: Ideal for faster drying of plaster, concrete, etc.
  • Damp rooms: Ideal for damp basements, old buildings and drying all damp objects.
  • Damage repair: After flooding or damage caused by extinguishing water – ideal for supporting the drying process.

Technical data:

Model name: WDH-IFH20
Operating voltage: 400V ~ 50Hz
Maximum power consumption: 20 kW
Connection: 32 A (high current)
Heating levels: 2 (1 = 10,000 W, 2 = 20,000 W)
Thermostat: Mechanical thermostat
Nominal heat output: 20,000 W (20 kW)
Type of temperature control: Stepless adjustment (0 - 40 °C)
Area of ​​application: -15 to 25 °C
Noise level: 59 dB/A
Protection class: IP24 (protection against dripping water)
Product dimensions (H/W/D): 600 x 430 x 380 mm
Weight: 19.2 kg
Scope of delivery: Heating unit, operating instructions
Maximum air circulation: Approx. 3084 m³/h
